Features

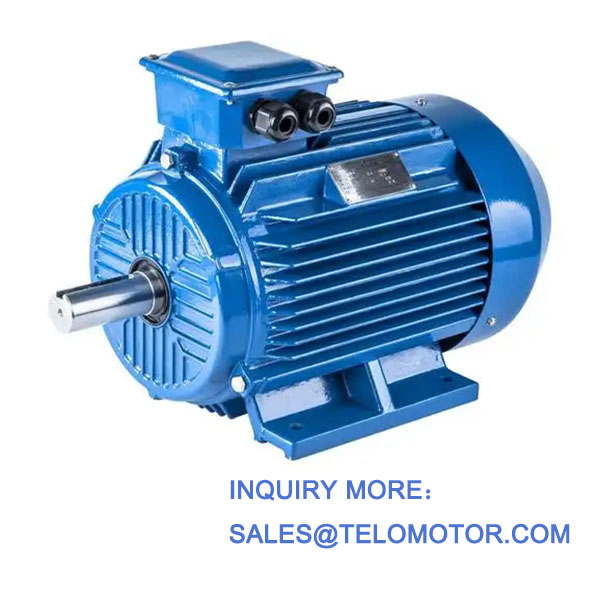

Y2 series cast iron three-phase asynchronous motor is a kind of TEFC squirrel cage motor with the latest design,the mounting mesasurement are subject to the IEC standard.

It has the characteristice of high efficiency,energysaving,high starting torque,low noise,low vibration and easy maintenance,

This series motor is widely used in the machinery without special requirement specially for reducer,air compressor,water pump,oil pump,packing and mining machinery and so on.

Operating conditoins

Ambient temperature: -40 ℃ ≤0≤40 ℃
Altitude: not exceeding 1000 meters
Voltage: 220/380V,230/440V,380/660V,400/690V
Rated Frequency: 50/60Hz
Connection: Star-connection for 4KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Conntinuous(S1).
Insulation class: F/H, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling type: IC411

TYPE	Rated Power		Rated Current（A)			Rated Speed	Efficiency	Power Factor	Noise (A)
TYPE	KW	HP	380V	400V	415V	(r/min)	η(%)	(cosΦ)	Noise (A)
Synchronous Speed 3000 R/min（2Poles）
Y2-80M1-2	0.75	1	1.8	1.7	1.68	2840	77.4	0.83	69
Y2-80M2-2	1.1	1.5	2.6	2.5	2.4	2840	79.6	0.84	69
Y2-90S-2	1.5	2	3.46	3.3	3.16	2840	81.3	0.84	74
Y2-90L-2	2.2	3	4.85	4.61	4.45	2840	83.2	0.85	78
Y2-100L-2	3	4	6.34	6.1	5.81	2860	84.6	0.87	79
Y2-112M-2	4	5.5	8.2	7.8	7.51	2880	85.8	0.88	82
Y2-132S1-2	5.5	7.5	11.1	10.5	10.15	2910	87	0.88	82
Y2-132S2-2	7.5	10	14.9	14.1	13.6	2910	88.1	0.88	82
Y2-160M1-2	11	15	21.2	20.2	19.5	2920	89.4	0.89	88
Y2-160M2-2	15	20	28.6	27.2	26.2	2920	90.3	0.89	88
Y2-160L-2	18.5	25	34.7	33	31.8	2920	90.9	0.9	88
Y2-180M-2	22	30	41	39	37.6	2930	91.3	0.9	91
Y2-200L1-2	30	40	55.4	52.6	50.7	2940	92	0.9	94
Y2-200L2-2	37	50	67.9	64.5	62.2	2960	92.5	0.9	94
Y2-225M-2	45	60	82.1	78	75.2	2960	92.9	0.9	94
Y2-250M-2	55	75	100	94.8	91.4	2960	93.2	0.9	95
Y2-280S-2	75	100	135	129	124	2960	93.8	0.9	96
Y2-280M-2	90	125	160	152	147	2960	94.1	0.91	96
Y2-315S-2	110	150	195	186	179	2970	94.3	0.91	98
Y2-315M-2	132	180	233	222	214	2970	94.6	0.91	98
Y2-315L1-2	160	220	279	265	256	2970	94.8	0.92	101
Y2-315L2-2	200	270	348	331	319	2970	95	0.92	101
Y2-355M2-2	250	340	433	412	397	2970	95	0.92	105
Y2-355L-2	315	420	545	518	499	2970	95	0.92	105
Synchronous Speed 1500 R/min（4Poles）
Y2-80M1-4	0.55	0.75	1.57	1.49	1.44	1390	75.2	0.75	63
Y2-80M2-4	0.75	1	2.05	1.59	1.88	1390	79.6	0.76	63
Y2-90S-4	1.1	1.5	2.85	2.71	2.61	1390	81.4	0.77	66
Y2-90L-4	1.5	2	3.72	3.54	3.41	1390	82.8	0.79	66
Y2-100L1-4	2.2	3	5.09	4.9	4.72	1410	84.3	0.81	69
Y2-100L2-4	3	4	6.78	6.39	6.16	1410	85.5	0.82	69
Y2-112M-4	4	5.5	8.8	8.36	8.06	1435	86.6	0.82	70
Y2-132S-4	5.5	7.5	11.7	11.2	10.8	1440	87.7	0.83	76
Y2-132M-4	7.5	10	15.6	14.8	14.3	1440	88.7	0.84	76
Y2-160M-4	11	15	22.5	21.4	20.6	1460	89.8	0.84	80
Y2-180M-4	18.5	25	36.3	34.5	33.3	1470	91.2	0.86	70
Y2-180L-4	22	30	43.2	40.8	39.3	1470	91.6	0.86	80
Y2-200L-4	30	40	57.6	55.1	53.1	1470	92.3	0.86	83
Y2-225S-4	37	50	70.2	66.7	64.3	1475	92.7	0.87	85
Y2-250M-4	45	60	84.9	80.7	77.8	1475	93.1	0.87	84
Y2-250M-4	55	75	103	98.1	94.6	1480	93.5	0.87	86
Y2-280S-4	75	100	138.3	131	127	1480	94	0.87	89
Y2-315S-4	110	150	201	191	184	1480	94.5	0.88	96
Y2-315M-4	132	180	240	228	220	1480	94.7	0.88	96
Y2-315L1-4	160	220	228	273	264	1480	94.9	0.89	100
Y2-315L2-4	200	270	360	342	329	1480	95.1	0.89	100
Y2-355M-4	250	340	443	421	406	1490	95.1	0.9	104
Y2-355L-4	315	420	559	531	511	1490	95.1	0.9	104
Synchronous Speed 1000 R/min（6Poles）
Y2-80M1-6	0.37	0.55	1.3	1.23	1.19	885	62	0.7	61
Y2-80M2-6	0.55	0.75	1.8	1.7	1.64	885	73.5	0.72	61
Y2-90S-6	0.75	1	2.29	2.18	2.1	910	75.9	0.72	64
Y2-90L-6	1.1	1.5	3.18	3.02	2.91	910	75.9	0.72	64
Y2-100L-6	1.5	2	4	3.8	3.66	920	79.8	0.75	68
Y2-112M-6	2.2	3	5.6	5.29	5.1	935	81.8	0.76	72
Y2-132S-6	3	4	7.4	7.03	6.78	960	83.3	0.76	76
Y2-131M1-6	4	5.5	9.75	9.26	8.93	960	84.6	0.76	76
Y2-131M2-6	5.5	7.5	12.9	12.3	11.8	960	86	0.77	76
Y2-160M-6	7.5	10	17.2	16.3	15.8	970	87.2	0.77	80
Y2-160L-6	11	15	24.5	23.3	22.4	970	88.7	0.78	80
Y2-180L-6	15	20	31.6	30	28.9	970	87.2	0.77	79
Y2-200L1-6	18.5	25	38.6	36.6	35.3	980	90.4	0.81	82
Y2-200L2-6	22	30	44.7	42.5	41	980	90.9	0.83	82
Y2-225M-6	30	40	59.3	56.3	54.3	985	91.7	0.84	84
Y2-250M-6	37	50	71	67.5	61.1	980	92.2	0.86	85
Y2-280M-6	55	75	104	99.5	95.9	980	91.3	0.86	85
Y2-315M-6	90	125	169	161	155	985	94	0.86	90
Y2-351L-6	110	150	`207	196	189	985	94.3	0.86	90
Y2-355L2-6	132	180	245	232	224	985	94.6	0.87	90
Y2-355M1-6	160	215	292	278	268	990	94.8	0.88	96
Y2-355M2-6	200	270	365	347	335	990	95	0.88	96
Y2-355L-6	250	340	457	434	418	990	95	0.88	96
Synchronous Speed 750 R/min（8Poles）
Y2-80M1-8	0.18	0.25	0.83	0.84	0.8	645	51	0.61	60
Y2-80M2-8	0.25	0.37	1.1	1.08	1.06	645	54	0.61	60
Y2-90S-8	0.37	0.5	1.49	1.41	1.36	670	62	0.61	64
Y2-90L-8	0.55	0.75	2.17	2.07	1.99	670	63	0.61	64
Y2-100L1-8	0.75	1	2.43	2.31	2.22	680	71	0.67	67
Y2-100L2-8	1.1	1.5	3.36	3.2	3.08	680	73	0.69	67
Y2-112M-8	1.5	2	4.4	4.18	4.03	690	75	0.69	69
Y2-132S-8	2.2	3	6	5.66	5.46	705	78	0.71	72
Y2-132M-8	3	4	7.8	7.41	7.15	705	79	0.73	72
Y2-160M1-8	4	5.5	10.3	9.76	9.41	720	81	0.73	76
Y2-160M2-8	5.5	7.5	13.6	12.9	12.5	720	83	0.74	76
Y2-160L-8	7.5	10	17.8	16.9	16.3	720	85.5	0.75	76
Y2-180L-8	11	15	25.5	24.2	23.3	730	87.5	0.76	78
Y2-200L-8	15	20	34.1	32.4	31.2	730	88	0.76	80
Y2-225S-6	18.5	25	41.1	39	37.6	735	90	0.76	80
Y2-225M-8	22	30	48.9	45	43.2	735	90.5	0.78	82
Y2-250M-8	30	40	63	60.2	58.1	735	90.5	0.78	83
Y2-280S-8	37	50	78	73.9	71.2	735	92.8	0.81	82
Y2-315S-8	55	75	111	106	102	735	92.8	0.81	88
Y2-315M-8	75	100	150	143	138	735	93	0.81	88
Y2-315L1-8	90	125	178	169	163	735	93.8	0.82	88
Y2-355L2-8	110	150	217	206	199	735	94	0.82	88
Y2-355M1-8	132	180	261	248	239	740	93.7	0.82	95
Y2-355M2-8	160	220	315	299	288	740	94.2	0.82	95
Y2-355L-8	200	270	387	368	355	740	94.5	0.83	95
380V 50HZ Synchronous Speed 600R/min（10Poles）
Y2-315S-10	45	60	100	95	91	590	91.5	0.75	89
Y2-315M-10	55	75	121	115	111	590	92	0.75	89
Y2-315L1-10	75	100	162	154	148	590	92.5	0.76	89
Y2-315L2-10	90	125	191	181	175	590	93	0.77	89
Y2-315M1-10	110	150	230	218	211	590	93.2	0.78	97
Y2-315M2-10	132	180	275	261	252	590	93.5	0.78	97
Y2-355L-10	160	220	334	317	305	590	93.5	0.78	96
