АИР SERIES THREE PHASE ASYNCHRONOUS MOTOR GOST STANDARD _GOST STANDARD MOTOR_PROFESSIONAL ELECTRIC MOTORS MANUFACTURER FROM CHINA TELO MOTOR

Frame Size	56~355
Power	0.18~355KW
Work Set	S1
Cooling Type	IC411
Insulation	F Class
Protection	IP55

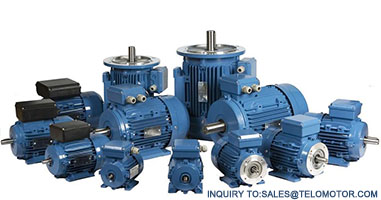

АИР series three-phase asynchronous motor is specially designed for Russia/Ukraine market, whose terminal box locates on the top of motor. The motor has a very compact structure and attractive appearance, the sizes and mounting dimensions are all in conformity with GOST standard.
Features: Good-looking appearance ,high efficiency, energy saving, low noise and little vibration., high starting torque, reasonable price, easy construction etc.
Working system: Continuous S1
Applications: General purpose including cutting, machine, pumps, fans, conveyors, Agricultural Machinery and food machinery

Operating Conditions

Ambient temperature: -15℃≤ 0≤ 40℃
Altitude: ≤1000 M
Rated voltage: 380V, 220/380V, 380/660V
Rated frequency: 50Hz

Connection:
Y Start-connection for 3KW and below
Delta-connection for 4KW or more

Основные технические характеристики:

привязка мощности и установочных размеров по стандарту ГОСТ 31606-2024;
степень защиты IP54, IP55 (электродвигатель АИР) по ГОСТ17494-87;
степень защиты IP23 (электродвигатель АМН);
изоляция класса нагревостойкости «F» по ГОСТ8865-93;
по способу монтажа, исполнения: IM1081, IM2081, IM3081, IM3681, IM2181 и др. по ГОСТ2479
климатическое исполнение У1, У2, У3 по ГОСТ15150-69.
режим работы S1;
способ охлаждения 1С-0151 по ГОСТ20459-87;
уровень шума в режиме холостого хода - 2 класса по ГОСТ16372-93.

Technical Datas

Model	Rated Power		Rated Power	Efficiency	Power	In,A	Is/In	Tmax/Tn	Ts/Tn	Weightkg
Model	KW	HP	RPM	%	factor	(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Weightkg
2P=2,n=3000
АИР 56 А2	0.18	0.25	2720	65	0.8	0.53	5.3	2.2	2.2	4.9
АИР 56 B2	0.25	0.37	2720	68	0.81	0.69	5.3	2.2	2.2	5.2
АИР 63 А2	0.37	0.5	2740	70	0.81	0.99	5.8	2.2	2.2	6
АИР 63 В2	0.55	0.75	2740	73	0.82	1.4	5.8	2.3	2.2	6.5
АИР 71 А2	0.75	1	2840	75.1	0.83	1.83	6.1	2.3	2.2	11
АИР 71 В2	1.1	1.5	2840	77	0.84	2.58	6.7	2.3	2.2	12.5
АИР 80 А2	1.5	2	2840	78	0.84	3.48	6.7	2.3	2.2	15.5
АИР 80 В2	2.2	3	2840	81	0.85	4.85	7	2.3	2.2	19.5
АИР 90 L2	3	4	2830	83	0.86	6.39	7	2.3	2.2	23
АИР 100 S2	4	5.5	2880	85	0.88	8.12	7.5	2.3	2.2	32
АИР 100 L2	5.5	7.5	2880	86	0.88	11	7.5	2.3	2.2	36
АИР 112 М2	7.5	10	2885	88	0.87	14.9	7	2.3	2.2	50
АИР 132 М2	11	15	2920	88	0.86	22.1	7.5	2.3	2.2	89
АИР 160 S2	15	20	2930	89.5	0.89	28.6	7.5	2.3	2.2	120
АИР 160 M2	18.5	25	2935	90	0.9	34.7	7.5	2.3	2.2	140
АИР 180 S2	22	30	2945	90.5	0.9	41	7.5	2.3	2	170
АИР 180 M2	30	40	2945	90.5	0.9	56	7.5	2.3	2	203
АИР 200 M2	37	50	2950	92.5	0.88	69.1	7	2.3	2	248
АИР 200 L2	45	60	2955	92.5	0.88	84	7	2.3	2	255
АИР 225 M2	55	75	2960	93	0.9	99.8	7.5	2.3	2.2	328
АИР 250 S2	75	100	2970	93	0.89	138	7	2.4	2	480
АИР 250 M2	90	125	2970	93	0.9	163	7	2.4	2	525
АИР 280S2	110	150	2980	93.5	0.89	201	7	2.2	2	610
АИР 280M2	132	180	2980	94	0.89	240	7	2.2	1.8	695
АИР 315S2	160	220	2975	94.8	0.92	279	7.1	2.2	1.8	1055
АИР 315M2	200	270	2975	95	0.92	348	7.1	2.2	1.8	1110
АИР 355S2	250	340	2980	95.4	0.92	433	7.1	2.2	1.8	1900
АИР 355M2	315	430	2980	95.5	0.92	545	7.1	2.2	1.8	2300
2P=4,n=1500
АИР 56 А4	0.12	0.17	1310	57	0.72	0.44	4.6	2.2	2.1	4.9
АИР 56 B4	0.18	0.25	1310	60	0.73	0.62	5	2.2	2.1	5.2
АИР 63 А4	0.25	0.37	1330	65	0.74	0.79	5.2	2.2	2.1	6.1
АИР 63 В4	0.37	0.5	1380	67	0.75	1.12	5.2	2.2	2.1	6.4
АИР 71 А4	0.55	0.75	1390	71.1	0.75	1.57	5.7	2.3	2.2	11
АИР 71 В4	0.75	1	1390	62	0.76	2.42	5.7	2.3	2.2	13
АИР 80 A4	1.1	1.5	1390	76	0.77	2.86	6.2	2.3	2.3	16
АИР 80 B4	1.5	2.2	1390	78	0.79	3.7	6.5	2.3	2.3	19.5
АИР 90 L4	2.2	3	1410	80	0.82	5.1	7	2.3	2.3	25
АИР 100 S4	3	4	1430	82	0.82	6.78	7	2.3	2.2	35
АИР 100 L4	4	5.5	1430	84	0.82	8.82	7	2.3	2.2	37
АИР 112 М4	5.5	7.5	1435	86	0.82	11.8	7	2.3	2.3	55
АИР 132 S4	7.5	10	1455	87	0.83	15.8	7	2.3	2.3	79
АИР 132 М4	11	15	1455	88	0.83	22.9	7	2.3	2.2	90
АИР 160 S4	15	20	1460	89.5	0.85	30	7.5	2.3	2.2	125
АИР 160 M4	18.5	25	1460	90	0.86	36.3	7.5	2.3	2.2	142
АИР 180 S4	22	30	1465	91	0.85	43.2	7.2	2.3	2.2	177
АИР 180 M4	30	40	1465	91	0.85	58.9	7.5	2.3	2.2	190
АИР 200 M4	37	50	1475	92.5	0.86	70.7	7	2.3	2.2	247
АИР 200 L4	45	60	1475	92.5	0.87	85	7	2.3	2.2	260
АИР 225 M4	55	75	1475	93	0.86	104	7.2	2.3	2.2	330
АИР 250 S4	75	100	1470	93.5	0.85	143	7.2	2.3	2.2	485
АИР 250 M4	90	125	1470	94	0.87	167	7.2	2.3	2.2	530
АИР 280S4	110	150	1480	94	0.88	202	7	2.1	2	615
АИР 280M4	132	180	1480	94	0.88	242	7	2.1	2	700
АИР 315S4	160	220	1480	95	0.89	288	6.9	2.2	2.1	1055
АИР 315М4	200	270	1480	95	0.89	359	6.9	2.2	2.1	1128
АИР 355M4	250	340	1480	95.3	0.9	443	6.9	2.2	2.1	1700
АИР 355S4	315	430	1480	95.3	0.9	558	6.9	2.2	2.1	1900
2P=6,n=1000
АИР 63 А6	0.18	0.25	850	56	0.66	0.74	4.2	2	1.9	6
АИР 63 В6	0.25	0.37	850	59	0.68	0.95	4	2	1.9	6.3
АИР 71 А6	0.37	0.5	885	65.1	0.7	1.23	4.7	2	1.9	12.2
АИР 71 В6	0.55	0.75	885	51	0.72	2.28	4.7	2	1.9	12.5
АИР 80 MА6	0.75	1	910	69	0.72	2.29	5.5	2.1	2	16
АИР 80 MВ6	1.1	1.5	910	72	0.73	3.18	5.5	2.1	2	20
АИР 90 L6	1.5	2	910	77	0.75	3.95	6.5	2.1	2	25
АИР 100 L6	2.2	3	940	80	0.76	5.5	6.5	2.1	2	38
АИР 112 МA6	3	4	955	83	0.77	7.13	6	2.3	2.1	51
АИР 112 МB6	4	5.5	960	83	0.76	9.63	6	2.3	2.1	53
АИР 132 S6	5.5	7.5	960	84	0.76	13.1	6.5	2.1	2.1	80
АИР 132 М6	7.5	10	960	84.5	0.78	17.3	6.5	2	2	91
АИР 160 S6	11	15	965	87.5	0.78	24.5	7	2.1	2	126
АИР 160 M6	15	20	965	89	0.81	31.6	7	2.1	2	148
АИР 180 M6	18.5	25	980	89	0.81	39	7	2.1	2.1	200
АИР 200 M6	22	30	980	90	0.83	44.7	6	2.3	2	240
АИР 200 L6	30	40	980	90	0.82	61.8	7	2.3	2.2	250
АИР 225 M6	37	50	980	91	0.84	73.5	7	2	2.1	330
АИР 250 S6	45	60	985	92.5	0.82	90.1	7	2.1	2	485
АИР 250 M6	55	75	985	92.5	0.82	110	7	2.1	2	530
АИР 280S6	75	100	985	92.5	0.82	150	7	2	2	610
АИР 280M6	90	125	985	93	0.83	177	7	2	2	700
АИР 315S6	110	150	985	94.1	0.86	207	6.7	2	2	1045
АИР 315M6	132	180	985	94.3	0.87	244	6.7	2	2	1100
АИР 355S6	160	220	990	94.6	0.88	292	6.7	2	1.9	1550
АИР 355M6	200	270	990	94.6	0.88	365	6.7	2	1.9	1600
АИР 355L6	250	340	990	94.6	0.88	456	6.7	2	1.9	1700
2P=8,n=750
АИР 71 В8	0.25	0.37	645	54	0.61	1.15	4	1.9	1.8	10.5
АИР 80MА8	0.37	0.5	670	62	0.61	1.49	4.3	1.9	1.8	17
АИР 80MВ8	0.55	0.75	670	63	0.61	2.17	4	2	1.8	19
АИР 90 LA8	0.75	1	685	72	0.68	2.33	4	2	1.8	25
АИР 90 LB8	1.1	1.5	690	72	0.68	3.41	4	2	1.8	28
АИР 100 L8	1.5	2	700	75	0.7	4.34	5	2	1.8	39
АИР 112 МA8	2.2	3	700	78	0.71	6.04	4	2	1.8	47
АИР 112 МB8	3	4	700	79	0.71	8.13	4	2	1.8	53
АИР 132 S8	4	5.5	720	82	0.7	10.6	6	2	2	81
АИР 132 М8	5.5	7.5	720	83	0.72	14	6	2	2	92
АИР 160 S8	7.5	10	720	85.5	0.75	17.8	6	2	2	138
АИР 160 M8	11	15	720	86.5	0.76	25.4	5.5	2	2	150
АИР 180 M8	15	20	725	87	0.76	34.5	6.5	2	2	205
АИР 200 M8	18.5	25	730	89	0.76	41.6	6.6	2	1.8	248
АИР 200 L8	22	30	730	89	0.76	49.4	6.6	2.3	2	262
АИР 225 M8	30	40	730	91	0.77	65	6.6	2	1.9	335
АИР 250 S8	37	50	735	91	0.75	82.4	6.5	2	1.8	490
АИР 250 M8	45	60	735	92	0.75	99.1	7	2	1.9	535
АИР 280S8	55	75	740	92	0.75	121	6.6	2	1.8	615
АИР 280M8	75	100	740	92.5	0.8	154	6.6	2	1.8	695
АИР 315S8	90	125	735	93.8	0.82	178	6.6	2	1.8	1055
АИР 315M8	110	150	735	94	0.82	217	6.4	2	1.8	1118
АИР 355S8	132	180	740	93.7	0.82	261	6.4	2	1.8	2000
АИР 355M8	160	220	740	94.2	0.82	315	6.4	2	1.8	2150
АИР 355MB8	200	270	740	94.5	0.83	387	6.4	2	1.8	2250
2P=10,n=600
АИР 315S10	55	75	590	92	0.75	121	6.2	2	1.5	928
АИР 315M10	75	100	590	92.5	0.76	162	6.2	2	1.5	1080
АИР 355S10	90	125	590	93	0.77	191	6.2	2	1.5	1200
АИР 355MA10	110	150	590	93.2	0.78	230	6	2	1.3	1800
АИР 355MB10	132	180	590	93.5	0.78	275	6	2	1.3	2500
АИР 355M10	160	220	590	93.5	0.78	333	6	2	1.3	2500

Installation Dimension

MOUNTING AND OVERALL DIMENSIONS IM B35 H80-355

Type	Poles	L	H	C	P	N	E	T	D	G	F	DH	HD	M	S	AD	AC	A	AB	B	K
80A	2.4.6	310	80	50	200	130	50	3.5	22	18.5	6	M6X1X25	214	165	4x12	145	158	125	165	100	10
80B	2.4.6	310	80	50	200	130	50	3.5	22	18.5	6	M6X1X25	214	165	4x12	145	158	125	165	100	10
90L	2.4.6	360	90	56	250	180	50	4	24	20	8	M8X1.25X25	250	215	4x15	155	177	140	180	125	10
100S	2.4	385	100	63	250	180	60	4	28	24	8	M8X1.25X35	270	215	4x15	180	198	160	205	112	12
100L	2.4.6	385	100	63	250	180	60	4	28	24	8	M8X1.25X35	270	215	4x15	180	198	160	205	140	12
112MA	4.6	435	112	70	300	230	80	4	32	27	10	M10X1.5X35	300	265	4x15	190	220	190	230	140	12
112MB	2.4.6.8	435	112	70	300	230	80	4	32	27	10	M10X1.5X35	300	265	4x15	190	220	190	230	140	12
132S	4.6.8	470	132	89	350	250	80	5	38	33	10	M12X1.75X40	345	300	4x19	210	259	216	270	140	12
132M	2.4.6	510	132	89	350	250	80	5	38	33	10	M12X1.75X40	345	300	4x19	210	259	216	270	178	12
160S	2	615	160	108	350	250	110	5	42	37	12	M16X2X40	420	300	4x19	255	315	254	320	178	15
160S	4.6.8	615	160	108	350	250	110	5	48	42.5	14	M16X2X40	420	300	4x19	225	315	254	320	178	15
160M	2	660	160	108	350	250	110	5	42	37	12	M16X2X40	420	300	4x19	255	315	254	320	210	15
160M	4.6.8	660	160	108	350	250	110	5	48	42.5	14	M16X2X40	420	300	4x19	255	315	254	320	210	15
180S	2	700	180	121	400	300	110	5	48	42.5	14	M16X2X45	455	350	4x19	280	355	279	355	203	15
180S	4.6.8	700	180	121	400	300	110	5	55	49	16	M16X2X45	455	350	4x19	280	355	279	355	203	15
180M	2	740	180	121	400	300	110	5	48	42.5	14	M16X2X45	455	350	4x19	280	355	279	355	241	15
180M	4.6.8	740	180	121	400	300	110	5	55	49	16	M16X2X45	455	350	4x19	280	355	279	355	241	15
200M	2	770	200	133	450	350	110	5	55	49	16	M18X2.5X50	505	400	4x19	305	397	318	395	267	19
200M	4.6.8	800	200	133	450	350	140	5	60	53	18	M18X2.5X50	505	400	4x19	305	397	318	395	267	19
200L	2	770	200	133	450	350	110	5	55	49	16	M18X2.5X50	505	400	4x19	305	397	318	395	305	19
200L	4.6.8	800	200	133	450	350	140	5	60	53	18	M18X2.5X50	505	400	4x19	305	397	318	395	305	19
225M	2	820	225	149	550	450	110	5	55	49	16	M18X2.5X50	560	500	4x19	335	445	356	435	311	19
225M	4.6.8	850	225	149	550	450	140	5	65	58	18	M18X2.5X50	560	500	4x19	335	445	356	435	311	19
250S	2	845	250	168	550	450	140	5	65	58	18	M20X2.5X60	615	500	4x24	370	485	406	490	311	24
250S	4.6.8	845	250	168	550	450	140	5	75	67.5	20	M20X2.5X60	615	500	4x24	370	485	406	490	311	24
250M	2	920	250	168	550	450	140	5	65	58	18	M20X2.5X60	615	500	4x24	370	485	406	490	349	24
250M	4.6.8	920	250	168	550	450	140	5	75	67.5	20	M20X2.5X60	615	500	4x24	370	485	406	490	349	24
280S	2	995	280	190	660	550	140	6	70	62.5	20	M20X2.5X60	680	600	4x24	410	547	457	550	368	24
280S	4.6.8	1025	280	190	660	550	170	6	80	71	22	M20X2.5X60	680	600	4x24	410	547	457	550	368	24
280M	2	1045	280	190	660	550	140	6	70	62.5	20	M20X2.5X60	680	600	4x24	410	547	457	550	419	24
280M	4.6.8	1075	280	190	660	550	170	6	80	71	22	M20X2.5X60	680	600	4x24	410	547	457	550	419	24
315S	2	1185	315	216	660	550	140	6	75	67.5	20	M20X2.5X60	845	600	4x24	530	620	508	635	406	28
315S	4.6.8	1220	315	216	660	550	170	6	90	81	25	M20X2.5X60	845	600	4x24	530	620	508	635	406	28
315M	2	1290	315	216	660	550	140	6	75	67.5	20	M20X2.5X60	845	600	4x24	530	620	508	635	457	28
315M	4.6.8	1325	315	216	660	550	170	6	90	81	25	M20X2.5X60	845	600	4x24	530	620	508	635	457	28
355S	2	1520	355	254	800	680	170	6	85	76	22	M24X3X70	1010	740	4x24	655	698	610	730	500	28
355S	4.6.8	1560	355	254	800	680	210	6	100	92	28	M24X3X70	1010	740	4x24	655	698	610	730	500	28
355M	2	1520	355	254	800	680	170	6	85	76	22	M24X3X70	1010	740	4x24	655	698	610	730	560	28
355M	4.6.8	1560	355	254	800	680	210	6	100	92	28	M24X3X70	1010	740	4x24	655	698	610	730	560	28
